Support for your Dyson V11™ cordless stick vacuum
Here you can find helpful tips, maintenance advice, your user manual and more.
Activate your guarantee
You can get support that's tailored to you, owner exclusives and more when you register your machine.
Getting started
You can quickly get up and running with our step-by-step guide.
Fully charge before first use
It's important to fully charge your new machine before using it for the first time, and after every clean. This is because the battery and monitoring system's algorithm 'learns' over time, and fully charging your machine helps it to more accurately calculate and display remaining run time.
Using your machine
Understanding the three cleaning modes
-

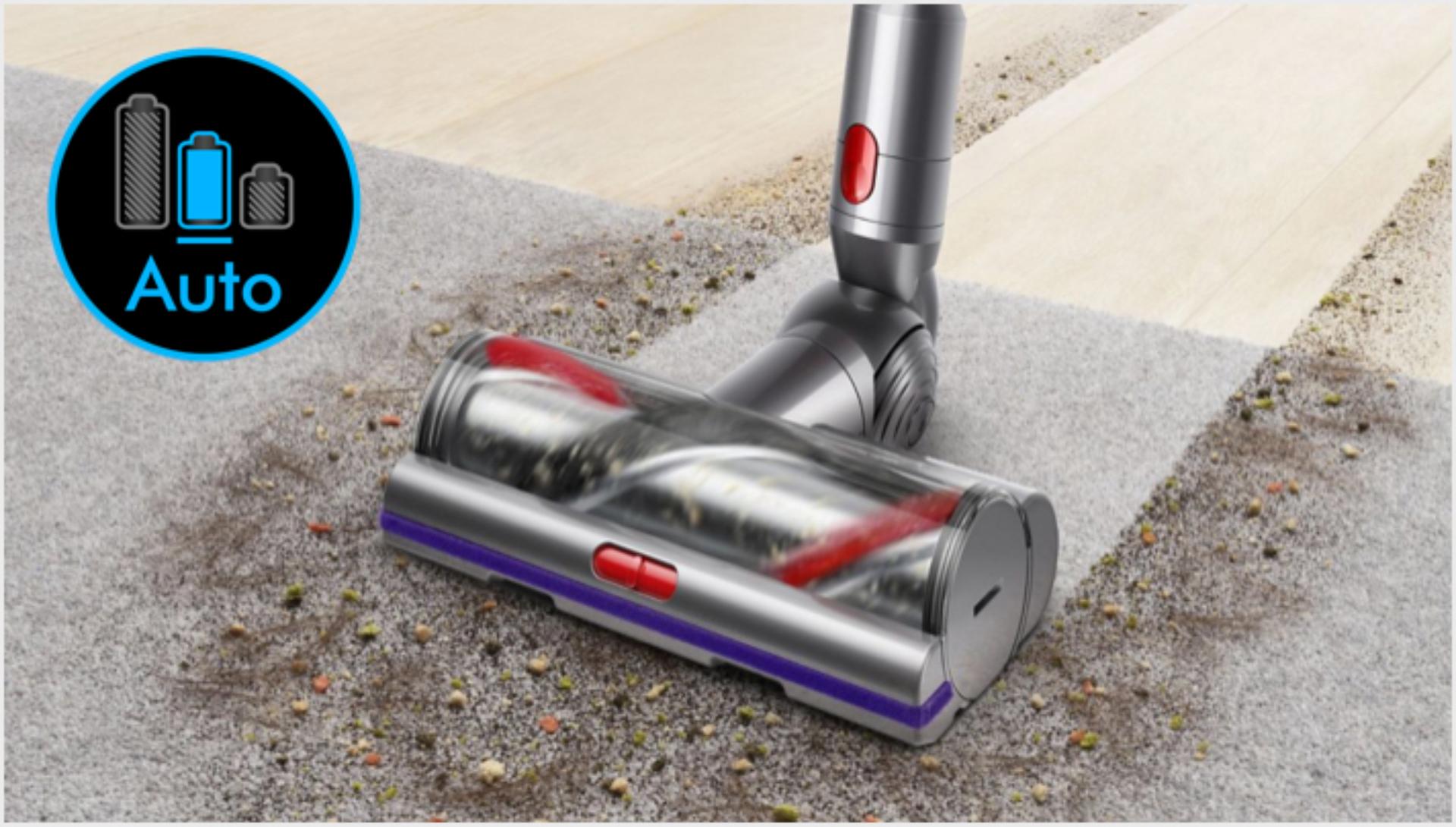

Auto/Med mode
Automatically adjusts suction power across different floor types. Auto mode is replaced by Med mode when you're not using the High Torque cleaner head.
-

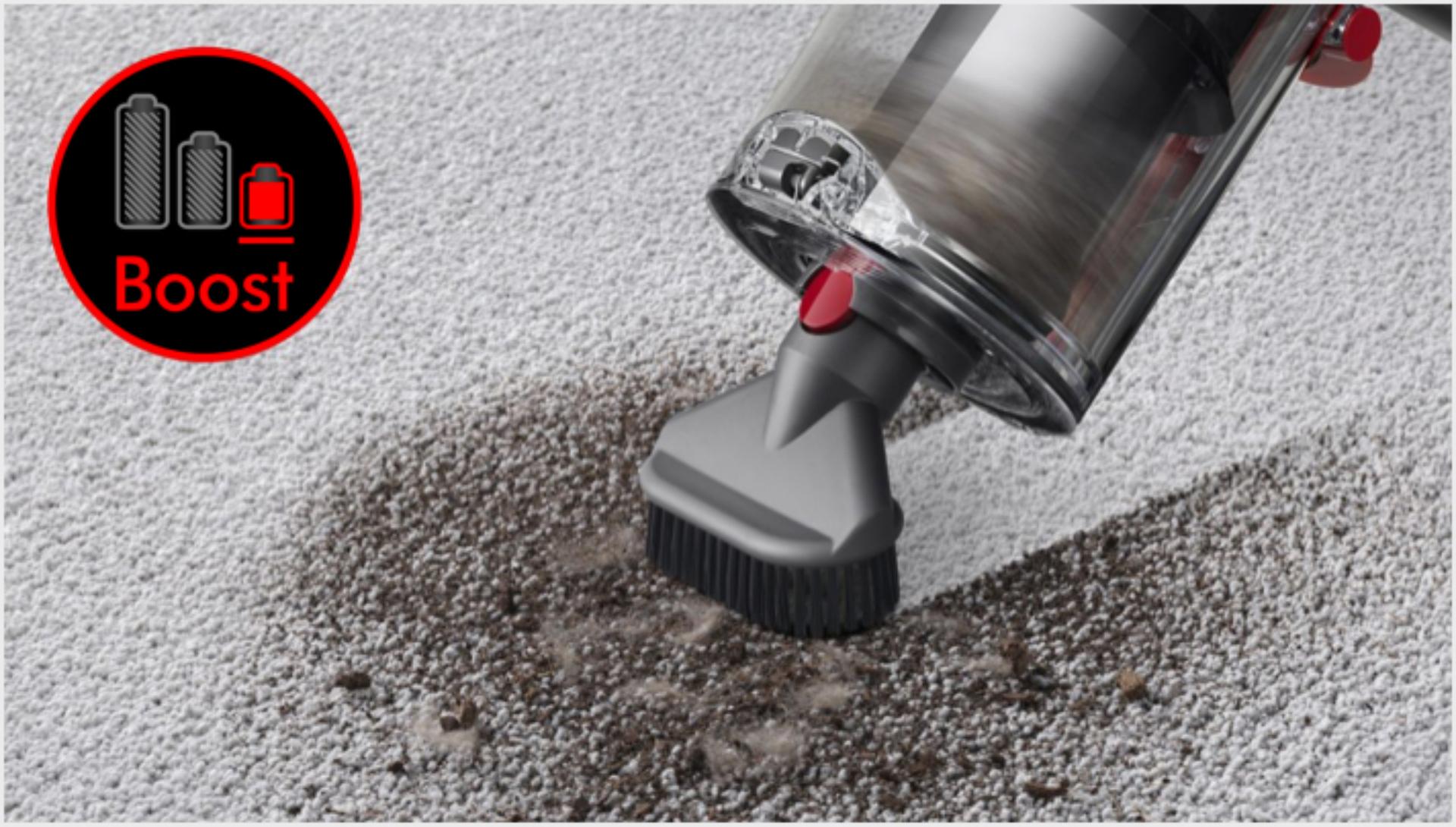

Boost mode
Designed for intensive cleaning on ground-in dirt, with up to five minutes of run time.
-

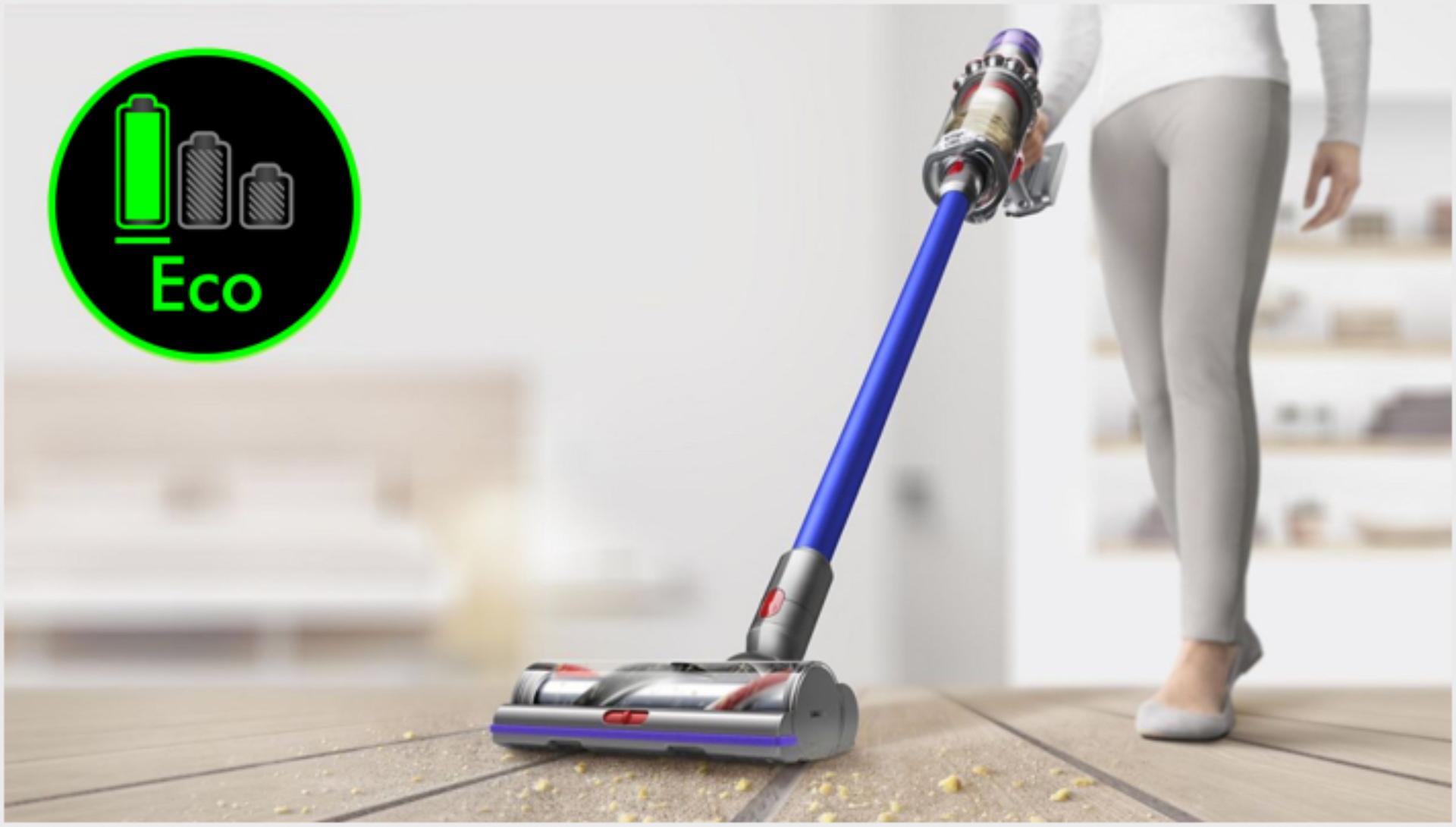

Eco mode
Maximum run time for longer cleans all around your home.
Choosing the right tool for the task
-

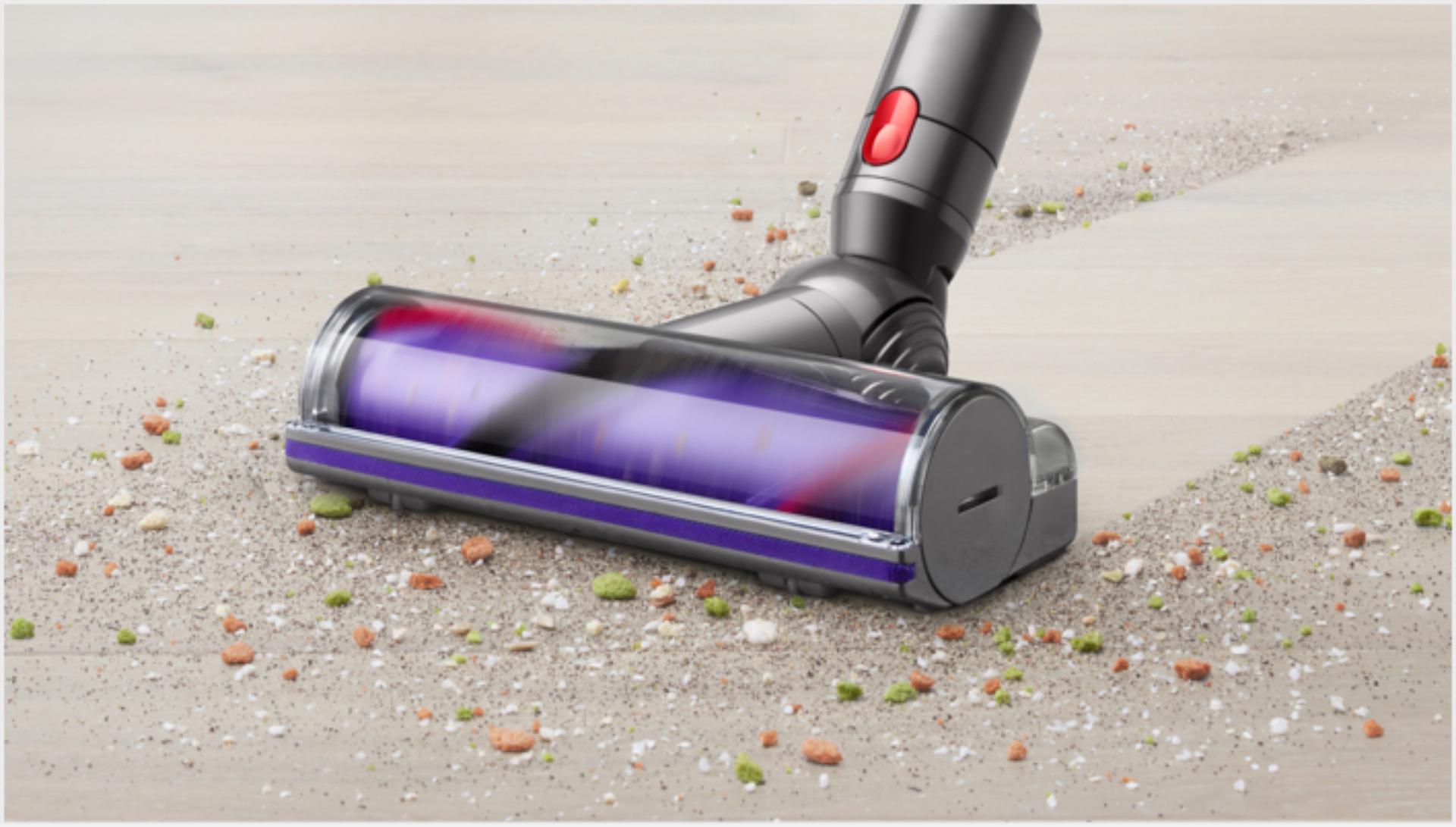

Direct drive cleaner head
Drives stiff nylon bristles into carpets to capture ground-in dirt.
-

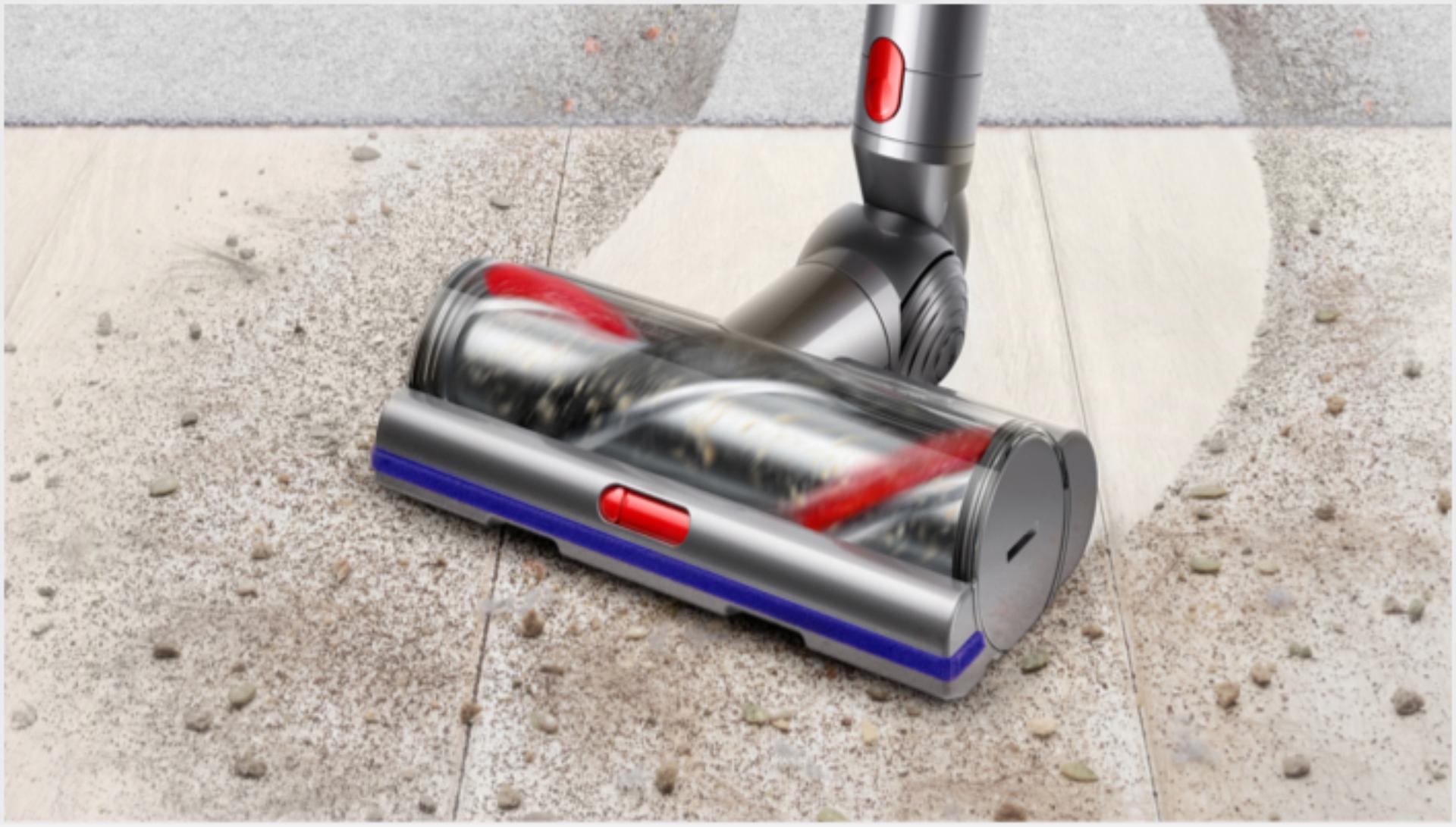

High Torque cleaner head
Uses Dyson DLS™ (Dynamic Load Sensor) technology to automatically adjust power across floor types. So you can deep clean between carpet and hard floor without having to change accessories.
-

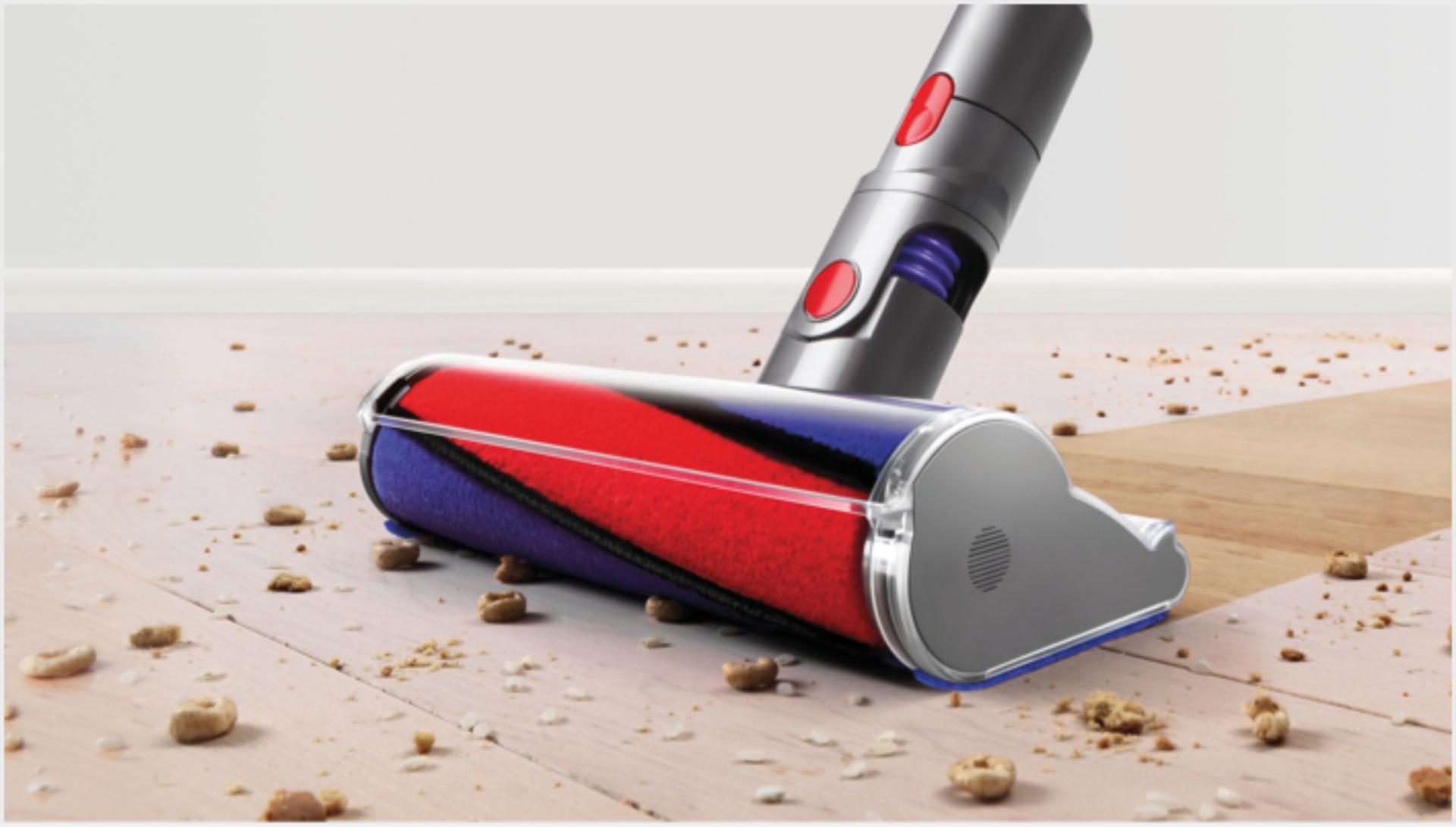

Soft roller cleaner head
Engineered for hard floors. Sucks up fine dust and large debris simultaneously.
-

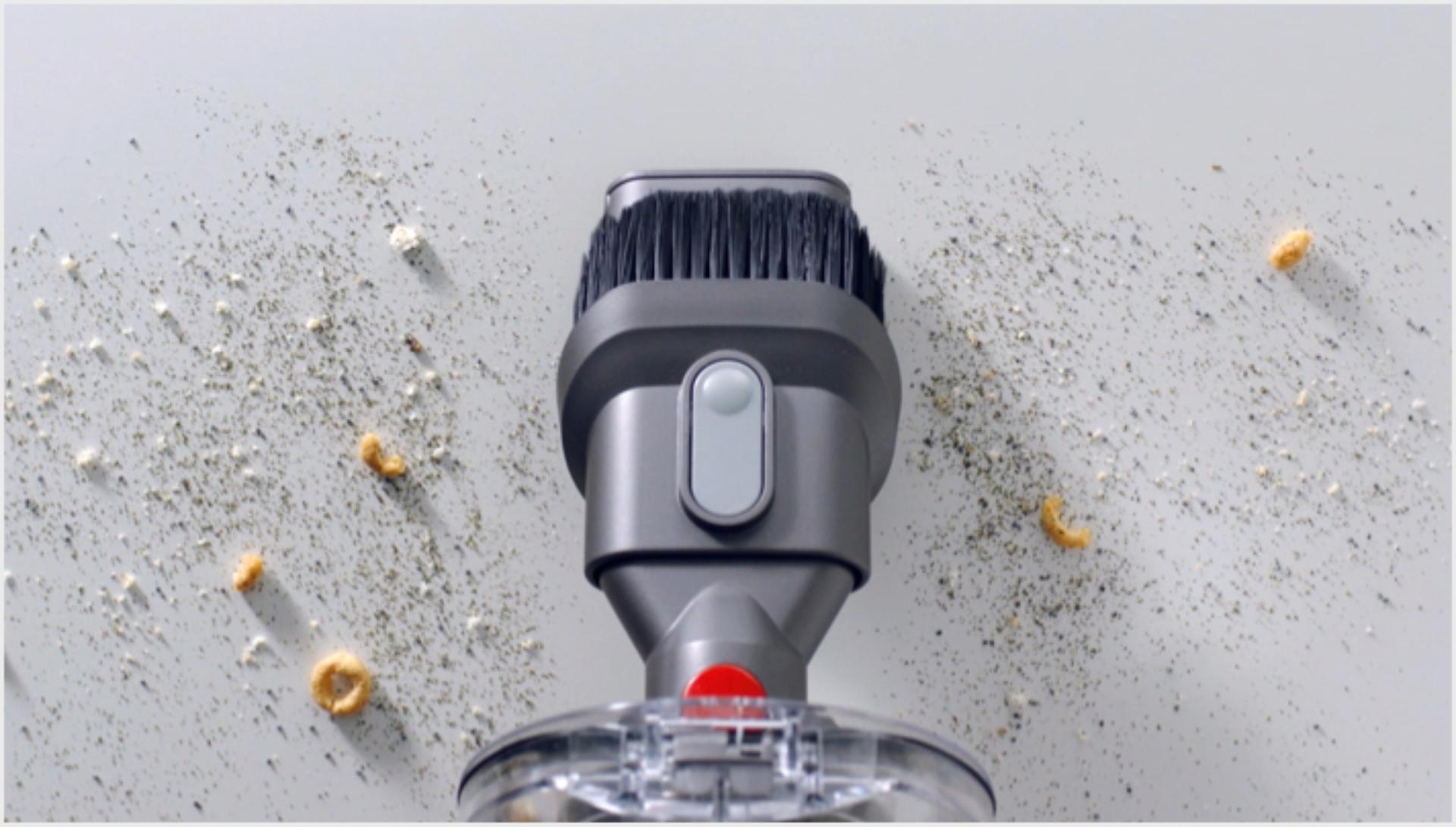

Combination tool
Two tools in one, for versatile cleaning. Its stiff nylon bristles are tough enough to remove ground-in dirt.
-

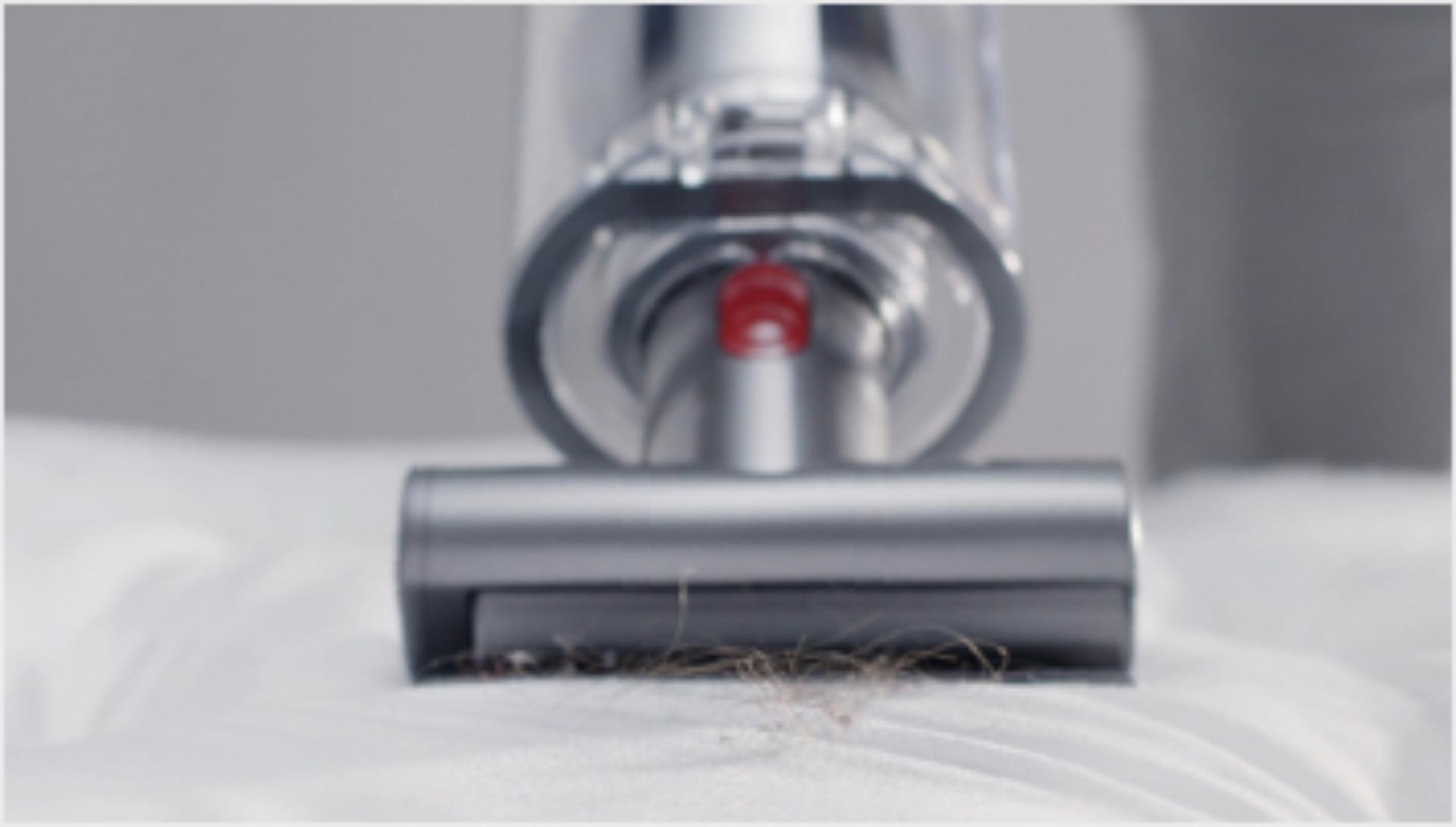

Mini motorised tool
The motorised brush bar tackles hair and ground-in dirt in tight spaces, like your stairs or car.
-

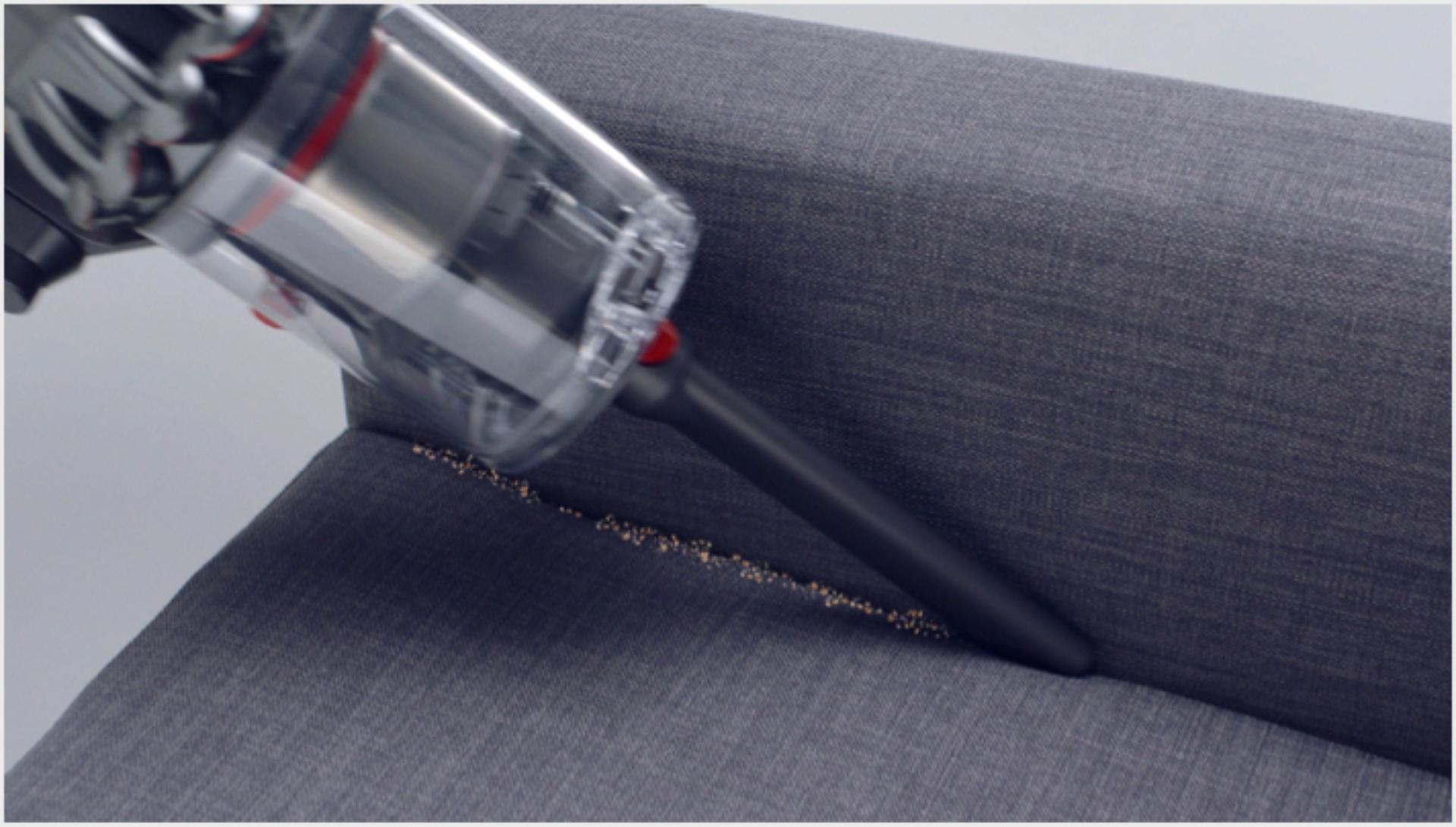

Crevice tool
Tackles dust and allergens in hard-to-reach places, such as gaps and corners.
-

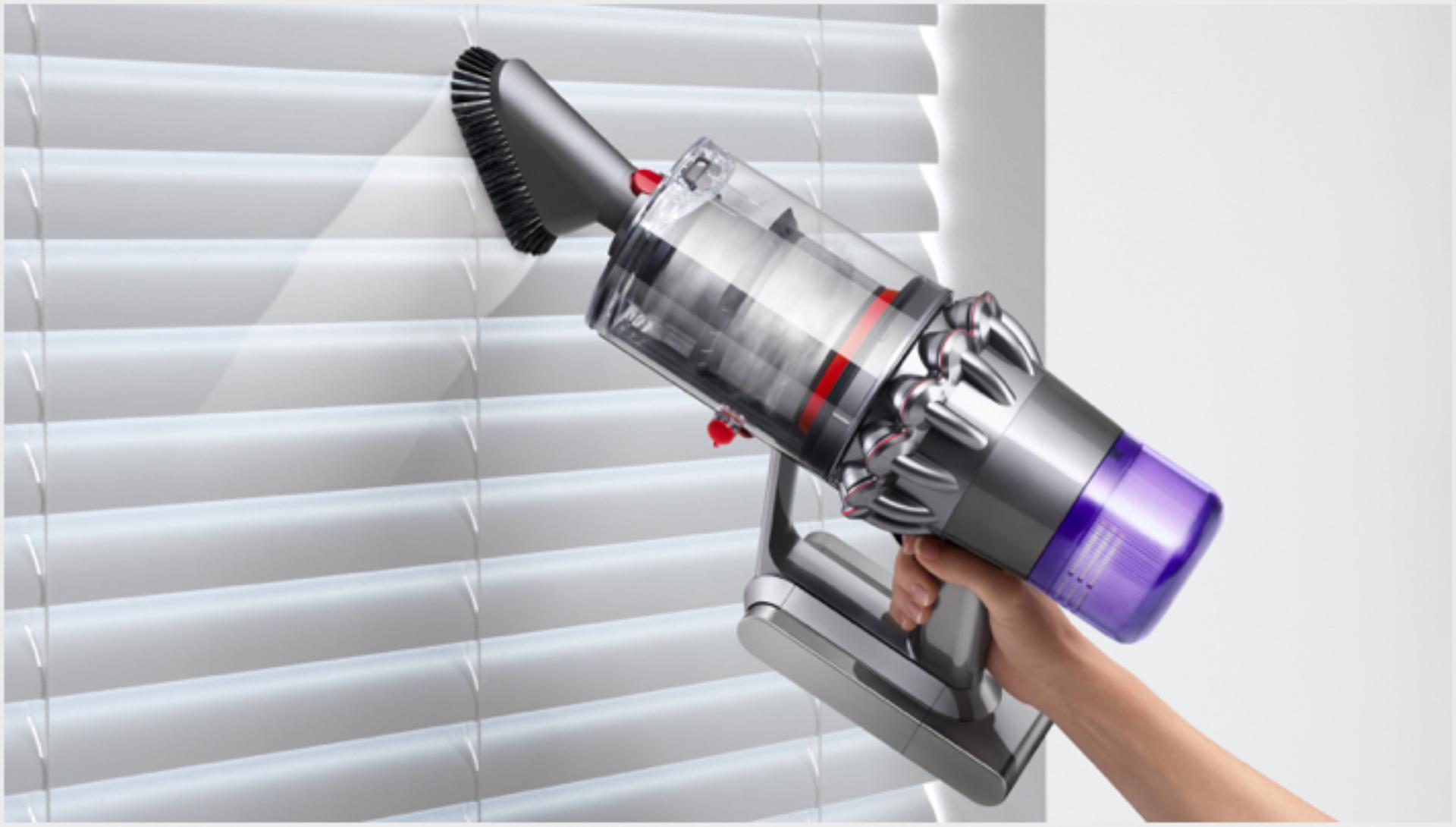

Soft dusting brush
Designed for vacuum-assisted dusting. Soft bristles lift dust and allergens from delicate surfaces.
-
-
Stubborn dirt brush
The stiff bristles remove mud and dried-in dirt.
Using the LCD screen
The LCD screen shows current performance, including selected cleaning mode, remaining run time, filter maintenance reminders and blockage reports.
Charging your machine's battery
If your machine has a red catch on the battery, you can charge your battery on or off your machine, in or outside of the dock.
Swapping the battery
Remove and replace the battery pack at the press of a button to increase your run time. Click-in batteries can be charged on or off the machine. Additional battery packs sold separately.
Maintaining your machine
From clearing the brush bar to washing the filter, our quick guide will help you keep your machine working at its best.
-
Checking for blockages
Your machine will make a pulsing sound when there's a blockage. Watch the video to see how to find blockages.
-

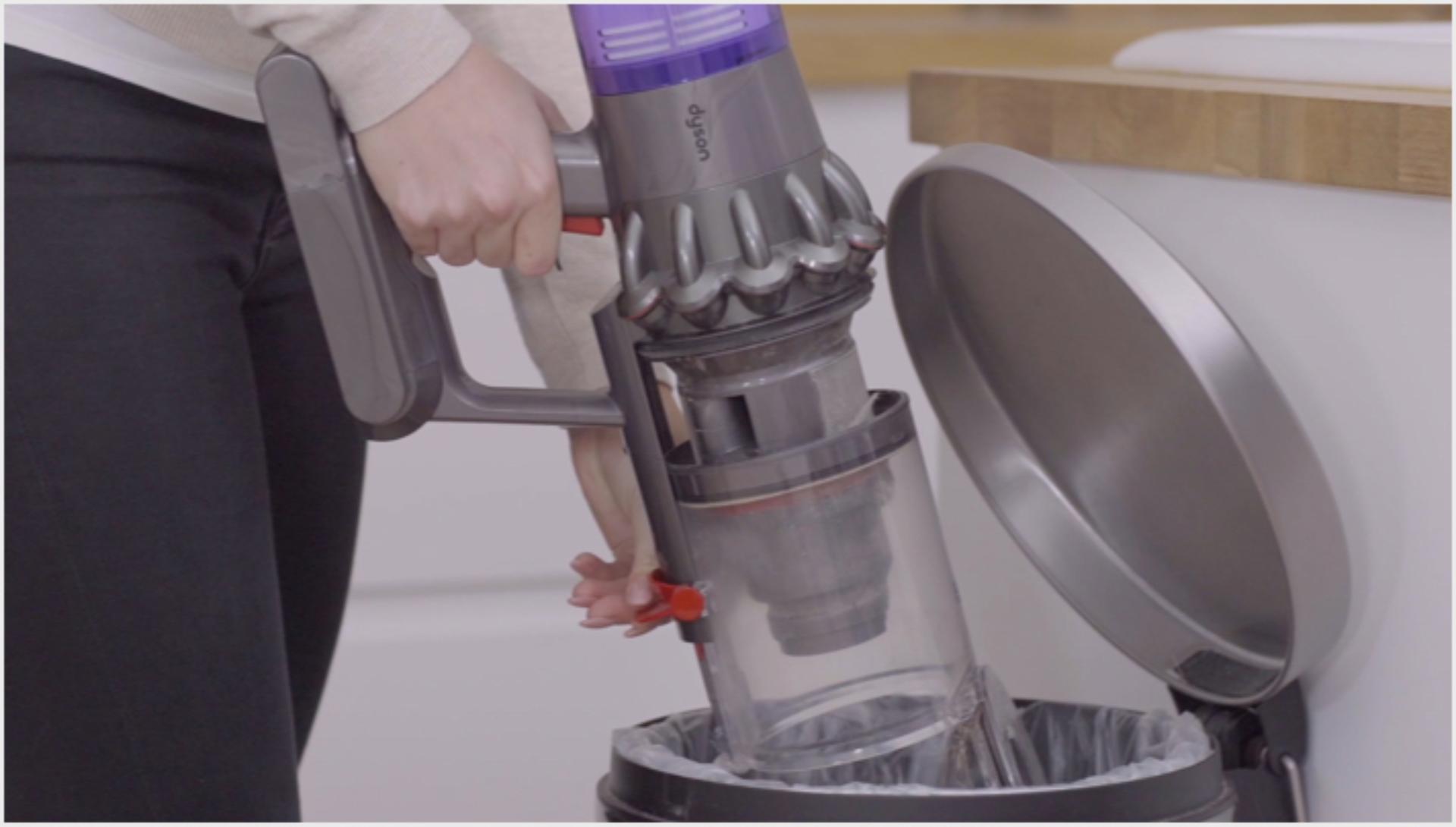

Emptying the bin
The 'point and shoot' bin emptying mechanism easily and hygienically ejects dirt. See how to do it.
-
Detangling the brush bar
Clearing wrapped hair and fibres relieves unnecessary strain on your machine’s motor – restoring full power. Watch how.
-
Washing the Soft roller cleaner head
You can wash your Soft roller cleaner head's brush bars. See how to do it in our step-by-step guide.
-
-

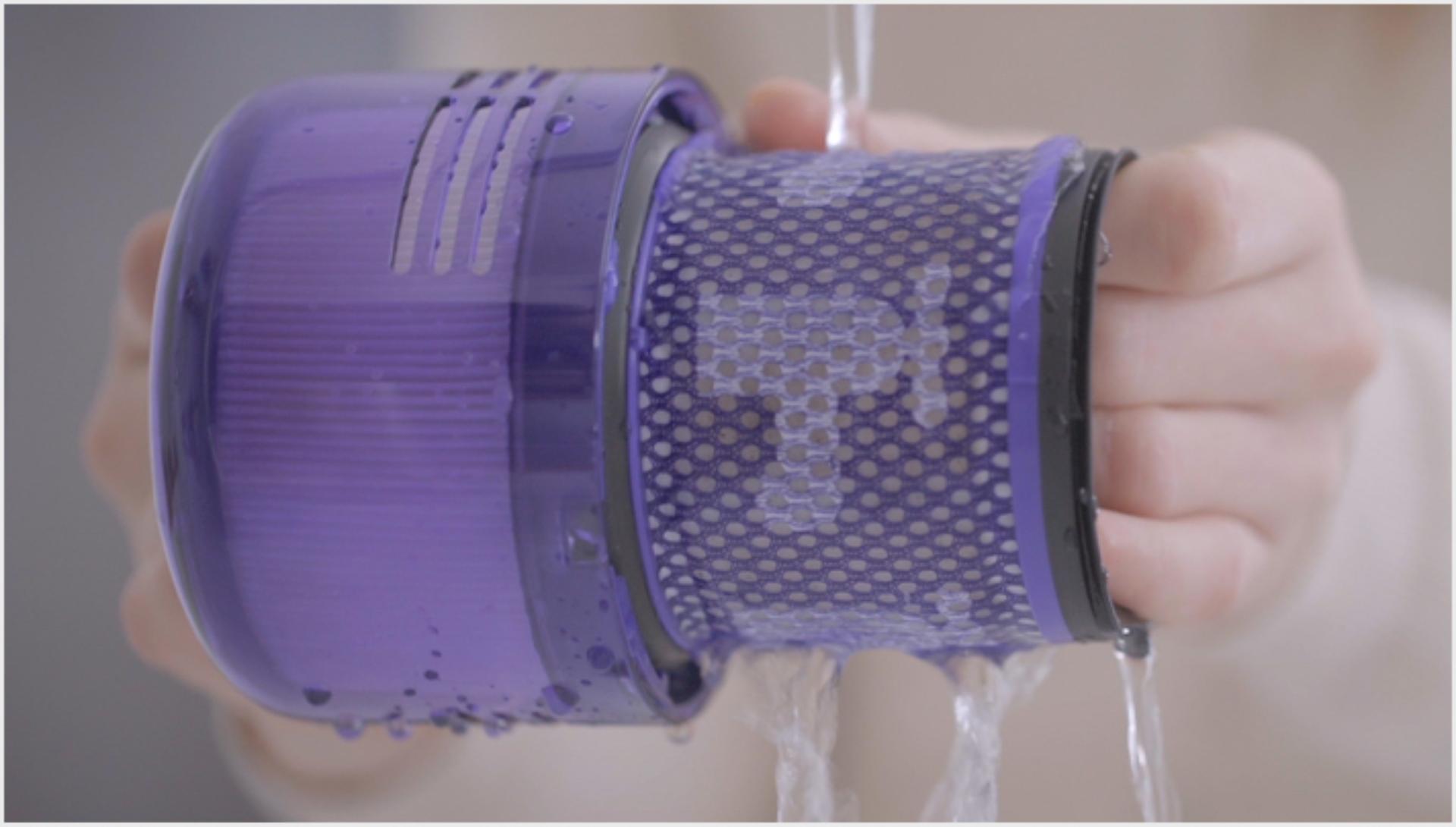

Washing the filter
We recommend washing your filter once a month, for your vacuum to perform at its best. See how to do it quickly and easily.
Useful tips
-
Don't overfill it
To maintain suction, keep an eye on the bin and empty it as soon as debris reaches the MAX marker.
-
Regularly wash the filter
It's important to wash the filter regularly, to maintain optimum performance. The screen will remind you when it's time to do this.
-
Setting up your charging dock
You can use the charging dock to store your machine, so it's always to hand and ready to go. See how to set it up.
Frequently asked questions
The screen on your machine will remind you when it's time to clean your filter. This will usually be around once a month, but may be more frequent if you use your machine heavily. After cleaning your filter, always leave it to dry for at least 24 hours. Ensure it's completely dry before refitting on your machine. We strongly recommend following the cleaning instructions and cleaning by hand. The filter is not suitable for dishwasher use.
A full charge takes up to 4.5 hours.
We recommend fully charging a spare battery soon after purchase, and alternating batteries regularly to prolong battery health.
The battery is designed to be left on charge permanently, and this will ensure that the vacuum is fully charged when it's next used. Once the battery is fully charged, your machine won't use any more electricity.
We recommend fully charging your machine after every clean. This helps your vacuum's battery and monitoring system's algorithm to more accurately calculate and display remaining run time.
The LCD screen only uses up to 1.5 watts of power, which won't noticeably impact run time.
Your machine works independently and doesn't connect to the Dyson Link app.
Your machine will only adapt to different floors when the High Torque cleaner head is attached and it's in Auto mode. Other tools and modes are designed for specific tasks.
Both modes provide the optimal balance of power and run time. Auto mode only works with the High Torque cleaner head to automatically adapt between different floor types. Med mode is displayed instead of Auto mode when all other tools are attached.
Press and hold the selection button beneath the screen for between 5 and 10 seconds to view the language list. Then press the selection button to scroll through the list. When you reach your preferred language, press and hold the button for between 2 and 4 seconds. If you've selected the wrong language, press and hold the button when the cross is displayed to return to the language list. Or to confirm the languag+C157e, press the button to scroll to the tick and then press and hold.
You can use the switch on the High Torque cleaner head to further adjust the suction. Slide it towards the '+' for maximum suction for ground-in dirt and large debris on durable floor coverings. And towards the '-' for light dirt on deep pile carpets and delicate floor coverings, such as vinyl and lino. Leave it in the middle for dust and debris on carpets, rugs and hard floors.
